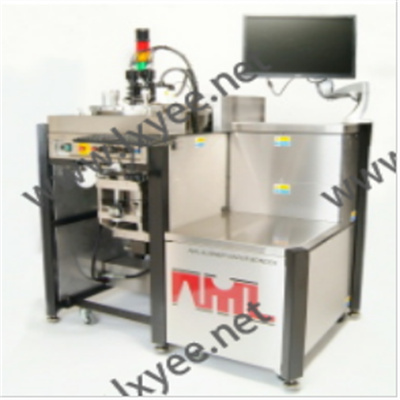

英國AML 邦定機AWB 04 & 08 Platform
咨詢購買
|
英國AML 邦定機AWB 04 & 08 Platform
AWB具有執行對齊功能:
陽極，共晶，直接(高溫和低溫)玻璃熔塊，粘合劑，焊料和熱壓晶片焊接。
新的“無粘合劑”臨時粘接
在一臺機器上對中和粘接
. In-situ 對齊 accuracy. 1 微米
. 10-6mbar Vacuum 2 條 過程 ?特高壓選項
. Voltage 2.5 kV.
. Temperature 560 ° C.
. Forces 40 kN.
結合 周期 / 高 throughput. ?Market 領先 快
2 “ 8 ". ?Wafer 大小
In-situ UV cure.
自動PC控制和數據采集
實時控制所有鍵參數或全自動配方。所有的鍵合參數，如電流、電壓、集成電荷、溫度、室壓、力、晶圓分離、運行參數、配方、SPC晶圓批號、事件日志等，都自動存儲在文件中，用于圖形繪制和趨勢分析。機器也可以聯網，并由AML遠程詢問，以幫助發現故障。全自動配方，包括在生產環境中自動對齊除霧操作。
對齊方式:
手動和自動對齊。原位對齊比其他焊接(在粘結室外進行對齊)具有優勢。'一鍵'對齊和鍵合?？梢姽夂图t外光譜。廣泛間隔的三維對齊標記的圖像捕獲。
校準可進行熱或冷:
這消除了由于熱膨脹和晶圓片、機器部件和壓板之間的不匹配而導致的對準誤差。
大晶片分離:
允許晶圓片之間存在較大的溫差，這是通過工藝氣體(如成形氣體)更好地活化或原位氧化還原晶圓片的理想選擇。也允許快速，高真空和良好定義的焊接環境。
現場系統:
還可以在粘接過程之前直觀地確認所需的對齊仍在進行中。
晶片尺寸:
2 "， 3"， 4"， 5 "， 6 "和8 "。(芯片和形狀奇怪的基板，但沒有對齊)。
機械手:
使晶圓片在真空和高溫下能夠原位對準。
接觸力:通過手動或電動液壓提供，最大可達40kN。
精密晶圓平行度調整。
1μm對準精度。
光學:
雙顯微鏡-通過鏡頭照明的照相機系統。兩個CCD相機并排顯示圖像。包括紅外功能。同時顯示晶圓片的分離力和鍵合力，實現對中控制。
成鍵
環境:
真空，或工藝氣體。全自動干式渦輪泵送系統~ 1x10- 6mbar至2bar絕對壓力。特高壓選項
溫度:
上下壓板均可獨立調節，在1°C的步驟。加熱和冷卻速度可編程。最高溫度是560℃。
電極(陽極鍵合):
全尺寸加熱板，用于上下電極，以獲得更好的粘結均勻性。0-2.5千伏直流可達40毫安。恒流或恒壓運行，改善過程控制和應力管理。
AWB-04可以粘合3到6英寸的晶圓片和芯片
AWB-08可以粘合6英寸和8英寸的晶片
其他選項:
?Auto alignment.
?Triple 堆棧 結合 tool.
?Powered lid.
?Pressure control.
?CMOS compatible.
?High 精度 系統 1 μm alignment.
低溫 激活 bonding. ?RAD 工具
?In-situ UV Cure.
?Motorised X, Y, ? & Z movement.
?Image capture.
?Process support.
AML - AWB 04 & 08 Platform
The AWB has the versatility to perform aligned:
Anodic, Eutectic, Direct (High & Low Temperature) Glass frit, Adhesive, Solder & Thermo-compression wafer bonding.
New 'Adhesive free' temporary Bonding
Alignment & bonding in one machine
?In-situ alignment 1 micron accuracy.
?10-6mbar Vacuum to 2bar process gas. UHV Option
?Voltage up to 2.5kV.
?Temperature up to 560° C.
?Forces up to 40kN.
?Market leading fast bonding cycle times / high throughput.
?Wafer sizes 2"- 8".
?In-situ UV cure.
Automatic PC Control & Data acquisition
Live control of all bond parameters or fully automated recipes. All the bonding parameters e.g. current, voltage, integrated charge, temperature, chamber pressure, force, wafer separation, run parameters, recipes, wafer batch No for SPC and event logs are automatically stored in files for graph plotting and trend analysis. Machines can also be networked and remotely interrogated by AML to aid fault finding. Fully automatic recipe, including auto alignment to deskill operation in a production environment.
Alignment:
Manual and auto alignment. In-situ alignment has advantages over other bonders (where alignment is made outside the bond chamber).‘One click’ align and bond. Visible and IR. Image capture for widely spaced 3D alignment marks.
Alignment can be carried out hot or cold:
This eliminates alignment inaccuracies due to thermal expansion & mismatch between wafers, machine parts & platens.
Large wafer separation:
Allows large temperature difference between wafers – ideal for better activation or in-situ oxide reduction via process gas e.g. forming gas. Also allows fast, high vacuum & well defined bonding environment.
In-situ system:
Also enables visual confirmation just before the bonding process that the desired alignment is still being achieved.
Wafer sizes:
2”, 3", 4", 5”, 6” & 8”. (Also chips & odd shaped substrates, but without alignment).
Manipulator:
Enables in-situ alignment of wafers under vacuum and at elevated temperature.
Contact force: up to 40kN provided via manual or motorised hydraulics.
Precise wafer parallelism adjustment.
Alignment accuracy 1 μm.
Optics:
Twin Microscope – camera system with throughthe-lens illumination. Two CCD cameras and side-by-side display of images. Including IR capability. Simultaneous display of wafer separation & bonding force for complete alignment control.
Bonding
Environment:
Vacuum, or process gas. Fully automated dry turbo pumping system ~ 1x10-6 mbar to 2bar absolute pressure. UHV option
Temperature:
Both Upper & Lower Platens independently adjustable in 1 °C steps. Heating & Cooling rates are programmable. Max Temperature is 560°C.
Electrodes:(for Anodic Bonding)
Full size heated platens for both upper andlower electrodes for better bond uniformity. 0-2.5 kV DC up to 40 mA. Constant current or voltage operation, for improved process control & stress management.
The AWB-04 can bond 3” to 6” wafers and chips
The AWB-08 can bond 6” and 8” wafers
Additional Options:
?Auto alignment.
?Triple stack bonding tool.
?Powered lid.
?Pressure control.
?CMOS compatible.
?High accuracy system for 1μm alignment.
?RAD tool for low temperature activated bonding.
?In-situ UV Cure.
?Motorised X, Y, ? & Z movement.
?Image capture.
?Process support.
