快捷型原子力顯微鏡AFM
咨詢購買
|
百及納米ParcanNano快捷型原子力顯微鏡AFM
簡介:
公司以全球獨 家專利的針尖技術為核心競爭力,技術源自于德國伊爾默瑙工業大學,致力于主動式針尖技術在微納米結構制備和表征方面的研發,及其相關設備的產業化。
NanoMETRONOM是公司開發的一款顛覆性的新型AFM系統。它使用主動式智能針尖,集傳感器、驅動器和可功能化的針尖于一身,實現自激發和自傳感,無需復雜的激光校準,是取代現有AFM激光傳感的巨大改進。該系統可在大氣、液態及真空環境下實現對微納米結構的高速、高效表征,成像精度達到0.2納米的極限精度。
產品擁有像美國麻省理工學院、加州伯克利國家實驗室、荷蘭德?tīng)柗蛱卮髮W(xué)和清華大學等國內外知名科研客戶,以及韓國三星、荷蘭ASML等高端工業客戶。
產品特點:
。 大氣、真空及液態環境兼容
。 自激發自傳感智能針尖
。 快速自動進針 無需激光調節
。 操作極其便捷 5秒快速換針

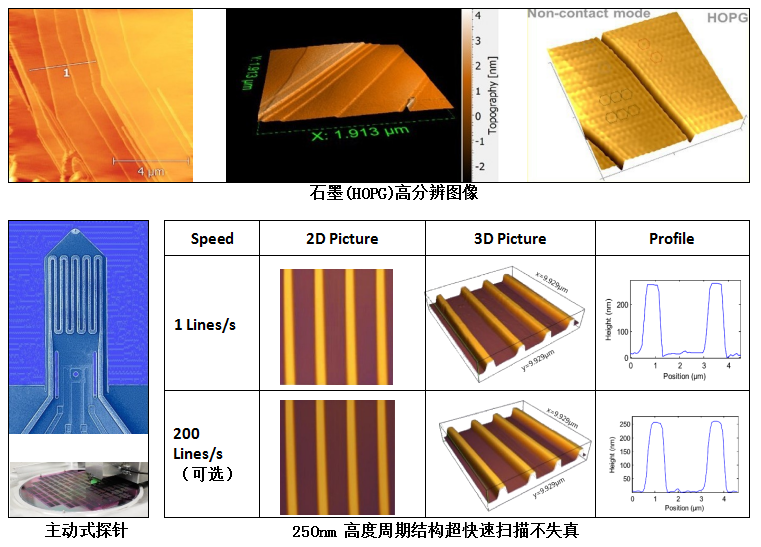

。 超高速掃描成像(100 lines/s)
。 實時光學顯微鏡定位掃描區域
應用領域:
。 多領域表面分析
。 工業領域快速抽檢
。晶圓片表面質量監控
。 弱機械力檢測
。 質量傳感器
。 生化檢測識別
AFM 100 nano ParcanNano fast atomic force microscope
Brief introduction:
The company takes the global exclusive patent tip technology as the core competitiveness, the technology is derived from the technical University of Ilmernau, Germany, is committed to the active tip technology in the preparation and characterization of micro and nano structure research and development, and the industrialization of related equipment.
NanoMETRONOM is a disruptive new AFM system developed by the company. It uses an active intelligent tip that combines sensors, actuators, and functionalized tips to achieve self-excitation and self-sensing without complex laser calibration, which is a huge improvement over existing AFM laser sensing. The system can achieve high speed and high efficiency characterization of micro and nano structures in atmospheric, liquid and vacuum environments, and the imaging accuracy reaches the limit accuracy of 0.2 nm.
Our products have well-known research customers at home and abroad such as Massachusetts Institute of Technology, Berkeley National Laboratory in California, Delft University and Tsinghua University in the Netherlands, as well as high-end industrial customers such as Samsung in South Korea and ASML in the Netherlands.
Product Features:
. Compatible with atmosphere, vacuum and liquid environment
. Self-excitation and self-sensing intelligent tip
. Fast automatic needle feeding without laser adjustment
. Extremely convenient operation 5 seconds fast needle change
. Ultra-high speed scanning imaging (100 lines/s)
. The scanning area was located by real-time light microscopy
Field of Application:
. Multidomain surface analysis
. Rapid spot inspection in the industrial field
. Wafer surface quality control
. Weak mechanical force detection
. Mass sensor sensor
. Identification by biochemical detection
Product advantage
The AFM 100-stage nanoParcannano high-speed atomic force microscope (AFM) uses an active intelligent needle tip that integrates a sensor, driver, and functional needle tip to achieve self-excitation and self-sensing without complex laser calibration, which is a huge improvement over existing AFM laser sensing. The system can realize high-speed and GX characterization of micro and nano structures in atmospheric, liquid and vacuum environments, and the imaging accuracy reaches the limit accuracy of 0.2 nm.
