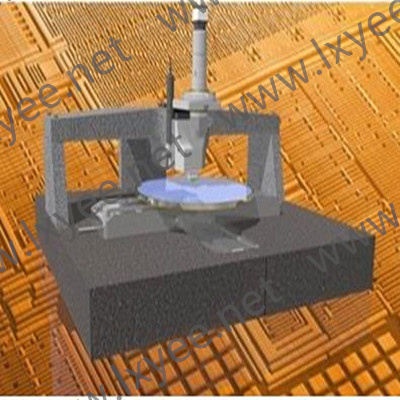

ParcanNano百及納米工業型原子力顯微系統

  基于全球獨家專利的、源自德國的主動式探針技術，百及納米科技開發了下一代工業智能型原子力顯微鏡系統，針對工業領域應用提供快速、智能的樣品形貌表征，適用于工業型檢錯、質量評定和量化測量等，尤其適用于檢測大尺寸晶圓或光學晶圓。

系統可集成大尺寸樣品位移臺、全自動光學導航系統和配套自動控制軟件，可對大尺寸樣品 進行全方位的光學成像定位，根據光學成像結果自動標定多個精確測量區域，并根據缺陷/待測結構的特點進行模式識別，智能選取原子力顯微鏡測量參數，在樣品多個位置間自動移動，進行可 重復的高分辨率測量，生成檢測書面報告，整個過程無需人工參與，最終實現對大尺寸樣品形貌 的智能化、自動化的高速、高效、高質量納米級測量。

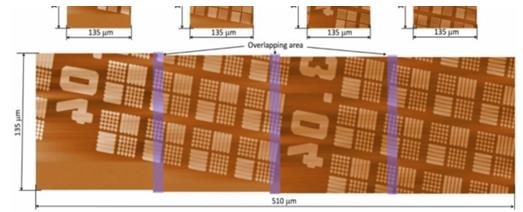

掃描結果示例：

掃描速率：6 mm/s

掃描范圍：510mm x 135mm

單次成像面積： 505 mm ×130 mm

結構高度: 60 nm

ParcanNano 100 nano industrial atomic force microscopy system

Based on the global patent home alone, from Germany active probe technology, best and nano science and technology to develop the next generation industrial system, intelligent atomic force microscope for industrial application provides a quick and intelligent the CLSM characterization, suitable for industrial inspection, quality evaluation and quantitative measurement of fault, especially suitable for detection of large size wafer or optical wafers.

System can be integrated displacement of large size sample machine, automatic optical navigation system and form a complete set of automatic control software, can be a full range of optical imaging of large size samples, according to the results of the optical imaging automatic calibration more accurate measurement area, and according to the characteristics of the defect/structures under test for pattern recognition, intelligent selection of atomic force microscope measurement parameters, It automatically moves between multiple locations of samples, carries out repeatable high-resolution measurements, and generates written test reports. The whole process requires no manual participation, and finally realizes intelligent, automated, high-speed, efficient and high-quality nanoscale measurement of large-size sample morphology.
